The Autotransformer: For Step-up, Step Down And Split Phase Balancing

PRODUCT CODE : ITR000100000

Description:

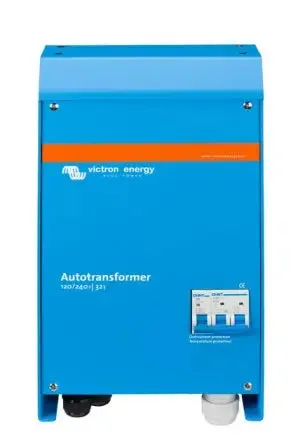

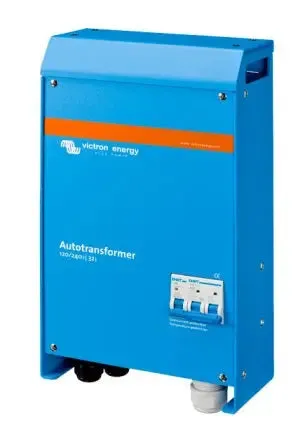

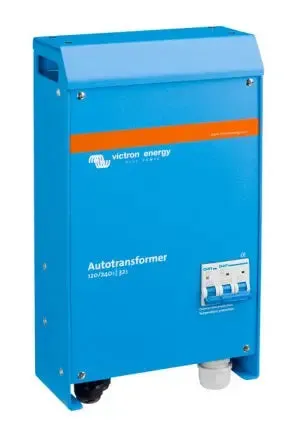

The Victron Energy Autotransformer 120/240VAC-32A is a powerful and reliable transformer designed to provide 120/240V input/output voltage with IP21 protection. This aluminium, toroidal transformer features temperature protection and a ground relay for use with MultiPlus/Quattro, making it a preferable alternative to stacked inverters.

An autotransformer can be used for step-up, step-down and split phase output balancing purposes. While the step-up and step-down functions are fairly straightforward, split phase output balancing may require some more attention.

Specifications:

• Input/output Voltage: 120/240V

• Input circuit breaker: 32A two pole

• Frequency: 50/60Hz

• Maximum 240V feed through current: 32A

• Neutral current, 30 mins: 32A (3800 VA)

• Neutral current, continuous: 28A @ 40°C/100°F

• Transformer Type: Toroidal

• Enclosure: Aluminium

• Input circuit breaker: Yes

• Protection Category: IP21

• Safety: EN60076

• Weight: 15kg

• Dimensions: 45cm (H) x 35cm (W)x 30cm (D)
